Description

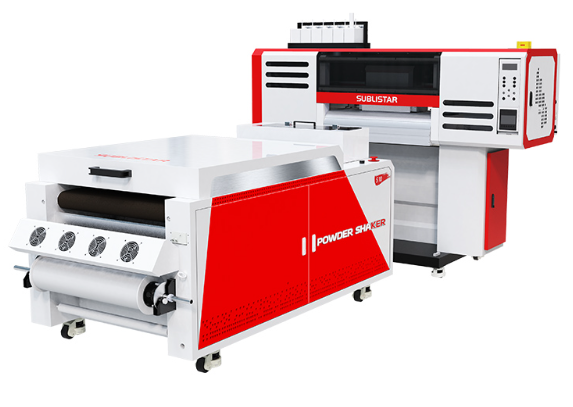

DTF-600 Series STAR IV DTF Printer & Shaker
Satisfy diversified printing needs: personalization, batch printing, fluorescent multi-color printing. Transferable on all kinds of garment fabrics, provide you with a comprehensive T shirt printing solution.
Technical Highlights:
- Print Head: 2 or 4 Epson I3200 print heads.
- Print Size: 24″(600mm) Print Width for options.
- Print Speed: 6-38m2/h
- Ink Type: C,M,Y,K+W; C,M,Y,K+LC,LM+FY,FP+W; C,M,Y,K+O,R,G,B+W
Top Features:
- White Ink Filtration & Circulation System: prevents ink deposits from clogging the printhead, and extends the life of the printhead.
- Nozzle Recovery System: effectively solves the problem of partial clogging of the printhead holes, and allows the machine to continue to run until a repairman comes to the house.
- Intelligent Platform Heaters: provide front, center, and rear heating to keep media warm and ink dry for high-quality output.
- Simultaneous White & Full Color Printouts, accurate white and color ink coverage with no white space. Features a wide color gamut and gradient colors.
Includes:
- 4 White Ink 1L bottles and 1, 1L bottle of CMYK color ink
- 1 Roll DTF film 13" x 328'
- 5KG of white adhesive powder
Installation and Training Available for additional fee
Product Highlight
Scalable Design, Super Stability
The DTF-600 STAR IV Series DTF printers feature an expanded range of fluorescent colors (including fluorescent pink and yellow).
Compatible with 2/3/4 printheads to meet diverse printing needs. Supports normal printing, fluorescent printing, and fast batch printing.
The in-line automatic cleaning function and nozzle compensation function ensure stable printing from DTF printers.
MPM(Multi-Printer Manager)
MPM enables one computer to manage multiple printers, helping workers to control machine production more quickly and further improve production efficiency.
Auto In-Line Cleaning System
Automatic nozzle cleaning at regular intervals. Which can keep the printer nozzle in the best working state.
System for Heating The Print Head
The printer can operate normally in a cooler setting by warming the ink damper and carriage base. Make sure the ink is flowing enough for printing.
DTF Printer Ultra Star IV + Powder Shaker Machine Features
DTF Printer Ultra Star IV can be equipped with DTF powder shaker machine S9 Pro and S10 versions, of which S9 Pro is the upgraded version of S9 with high-cost performance, and the S10 version is more intelligent with many functions, which brings a brand new printing experience.
DTF Printer Ultra Star IV + DSP S10
DTF Printer Ultra Star IV + DSP S9 Pro
DTF Powder shaker S10 version is a new generation of intelligent and multi-functional machine, containing industrial grade 7″ PLC color screen, lower power consumption, user-friendly operation, which can effectively ensure the safety of human-machine operation.
Powder bin upgrades, flexible infrared heating tubes, built-in permanent purification, and industrial grade gears ensure high quality output.
The DTF powder shaker machine DSP-600 (S9 PRO) has made some improvements and updates based on the original S9, and now has the same functions as the S10, and is extremely cost-effective.
Logical rationalization, perfect procedures. Software update, hardware upgrade, board quality is guaranteed.
| DTF Printer Ultra Star IV + DSP S10 | DTF Printer Ultra Star IV + DSP S9 Pro |
| Pre-heated powder compartments can effectively reduce the moisture of hot melt powder, smooth coating effectively prevents powder accumulation and spreads powder more smoothly. | The leakage protection function ensures safe operation and safer man-machine. |
| Increased powder spacer minimizes powder leakage and reduces the frequency of manual powder return. | Enhanced smoke removal efficiency, optimized operating environment, and more environmentally friendly. |
| Machine power can be adjusted to reduce energy consumption or match special voltage. | Oil leakage problem solved, reduced daily maintenance workload, more efficient. |
| Built-in preheating plate to save space. | Limit power to prevent overloading during daily operation. |
| Upgraded suction motor and built-in suction roller make the film feeding more stable and do not slip. | Heat preservation function, the guide belt is running, the temperature is maintained at 120 ° C, the guide belt is not running, the oven temperature is too high, and the temperature will gradually reach 95 ° C. |
| Increase the partition of the oven mouth to lock the temperature and make theT | The cooling fan, and drying of the output PET film, more efficient with the oven |
| Heating tube reserved space, according to the actual need to increase the number of heating tubes. | 2mm Stainless Steel Gears, high-quality parts to ensure stable output. |
| An oven latch can be installed to prevent misoperation or accidental scalding and to protect personnel safety. | Tension Take-up Reel, easier to take-up rolls, convenient for cutting. |
| Built-in permanent purification, no need to replace the filter element. Smaller body size, convenient to enter the house. | Integrated purifying fume extractor, effectively reduces the dust in the air, and optimizes the operation environment. |
| Increase the lifting ring to facilitate the movement of heavy equipment | |
| One key to open the warehouse, easy to open the warehouse door, easy maintenance | |
| Protect gear work, prolong the service life of gear | |
| Rounded edge design prevents accidental cuts and protects personnel safety. | |
| Increase the oil drain hole, fast oil drainage, and no oil accumulation, and keep the machine clean. | |
| When the waste oil reaches the limit level, the alarm reminds the treatment. |
Professional Features - Sublistar DTF Printer
Print Head Heating Available
Ink damper with external heating and carriage plate that releases heat. The printer can operate correctly in an environment with significant temperature fluctuation thanks to this technology. The heating feature can guarantee the ink’s good fluidity during the printing process.
Advanced Paper Pass system
Motor-controlled paper travel and industrial-grade platen rollers increase the stability and reliability of the printing process and prevent creasing and other printing-related problems. In the printing and output process, good printing accuracy is guaranteed.
Mute Linear Guide
Quiet operation and stability. Low noise, high speed, extended service life, and long-term operation without maintenance are all achieved by significantly reducing friction between the silent guide rail’s sliders and improving the retention of lubricating grease.
Japan 3M Filter
Large particles, gels, and other contaminants are efficiently caught by our imported filter, which also permits the necessary color dyes to pass through and stay in the ink. The imported filter offers a superior capacity for impurity filtration and a longer lifespan.
One-click automatic lifting
The DSP-S10 I series enables fully automatic lifting and retracting, eliminating the need for the operator to laboriously lift the oven. Save time, save labor, and save your mind.
Friendly Anti-suction Cooling Fan
User-friendly to prevent hair, clothing, etc. from being sucked in, especially for female workers to protect personnel safety when collecting printed film. Also cools and handles high-temperature curing film for better pattern color rendering.
Epson I3200-A1 Print Head
Epson I3200-A1 print heads are used in the DTF-600 Series STAR IV DTF Fluorescent printer. The Epson I3200 head boasts 3200 nozzles, a 600 dpi resolution, higher jetting frequency than DX5 and XP600, better color saturation, faster printing, and more accurate printing, all for a low price. Very economical.
| Model | I3200-A1 |
| Ink Types | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Product Specifications - DTF-600 Series STAR IV DTF Printer
| DTF-600series Inkjet Printer | ||||
| Model | DTF-6002 Star IV | DTF-6003 Star IV | DTF-6004 Star IV | DTF-6005 Star IV |
| Print Head Type | PrecisionCore Epson I3200*2 | PrecisionCore Epson I3200*3 | PrecisionCore Epson I3200*4 | PrecisionCore Epson I3200*5 |
| Print Resolution/Speed | 4pass: 12m² /hour | 4pass: 22m² /hour | 4pass: 38m² /hour | |
| 6pass: 8m²/hour | 6pass: 16m²/hour | 6pass: 28m²/hour | ||
| 8pass: 6m²/hour | 8pass: 12m² /hour | 8pass: 22m²/hour | ||
| Maximum Printing Width | 620mm | |||
| Color Mode | C,M,Y,K+W | C,M,Y,K+LC,LM+W / C,M,Y,K+FY,FP+W / C,M,Y,K+O,R,G,B+W | C,M,Y,K+W | C,M,Y,K+W; C,M,Y,K+LC,LM+FY,FP+W; C,M,Y,K+O,R,G,B+W |
| RIP Software | Maintop, FlexiPRINT, CADlink, PrintFactory | |||
| Interface | Network Port | |||
| Dimensions | 1766*750*1513mm (L*W*H) | |||
| Package Size | 1880*1060*740mm (L*W*H) | |||
| Package Weight | 210KG | |||
| Powder Shaker & Dryer | ||||
| Model | DSP-600(S10i) | DSP-750 (S10i Plus Dual) | ||
| Operation Mode | SCM Touch Screen | PLC Touch Screen | ||
| Max Working Width | 600mm | 600mm | ||
| Oven Length | 1080mm | 1620mm | ||
| Oven Temp. | Adjustable | 0-400°C (be adjustable) | ||
| Voltage | 110v/220v, 3phase, 60Hz | 110v / 220v, 3phase, 60Hz | ||
| Power | 3.5-4KW | 3.5-6KW | ||
| Package Size | 1900mm L x 980mm W (with Air Filter) x 900mm H | 2549mm (L) x 1181mm (W) x 910mm (H) | ||
| Package Weight | 285KG | 300KG | ||
