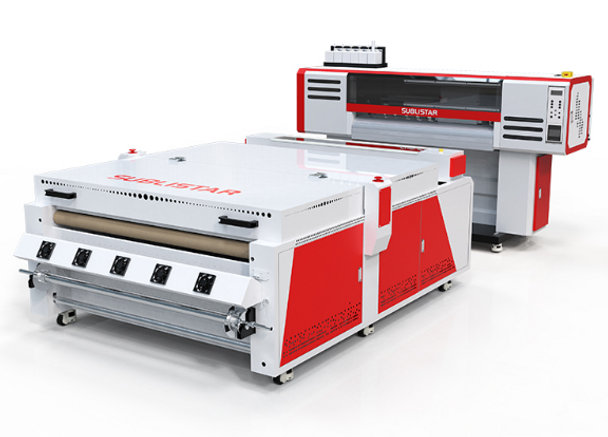

DTF-1200 Series STAR IV DTF Printer & Shaker – Rapid Mass DTF Printing
Technical Highlights:
- Print Head: 4/5 Epson I3200 print heads.
- Print Size: 47″(1200mm) Print Width for options.
- Print Speed: 3.5-38m2/h
- Ink Type: CMYK+W / CMYK+Fluorescent Colors+W / CMYK+CMYK+W
Top Features:
- High-precision silent guide effectively alleviates the noise generated during printing and optimizes the operating environment.
- One-tow multi-function, one computer monitors multiple printing situations, real-time dynamic monitoring, and timely finding problems.
- Double oven system, which can reach double purification effect, effectively absorbing the fee smoke in the printing process and purifying the air environment.
- The intelligent operation platform, simple and easy to operate, supports training as well as remote video guidance.
- Large-width printing, less maintenance, and more stable operation can obtain higher revenue.
- 4 White Ink 1L bottles and 1, 1L bottle of CMYK color ink
- 1 Roll DTF film 13" x 328'
- 5KG of white adhesive powder
Product Highlight
Large Width, Fast Speed
The 1200series Star IV large format DTF Printer & Shaker Machine uses the latest Direct to Film printing technology developed by Sublistar, which expertly balances quality and speed. The configuration of a double oven and a double purification can process the printed images rapidly and efficiently.
The best choice for superb apparel printing, makes you to be the No.1 printing business near customers.
Staggered Printing Technology
Variable dot printing with staggered printheads produces prints that are more realistic, bright, and saturated in color.
Expansive Gamut Output
With the addition of orange, red, green, blue, bright yellow, and fluorescent pink inks, 4-color or 8-color configurations can create distinctive special effects.
Advanced Media System
The employment of sophisticated algorithms and tension-controlled paper feeding helps to decrease obvious streaks, inconsistent color printing, and blurry printing borders.
Professional Features - Sublistar Large Format DTF Printer
Built-in Suction Roller
Powder shaker S10 dual oven suction motor is upgraded with a built-in suction roller to make film feeding more stable and non-slip.
Adjustable Built-In Heating Tube
Flexible infrared heating tubes, S10 heating tubes with reserved space. The number of heating tubes can be increased according to actual needs.
Exhaust Pipe Purification
Exhaust pipe purification, effectively avoiding dust overflow in the printing process, avoiding staff inhalation, more conducive to environmental health.
Leakage Protection
The leakage protection function can effectively prevent leakage caused by power failure or unstable voltage, and protect the equipment circuit and personnel safety.
Moving Rings
Mobile lifting ring, convenient for the machine into the house and post maintenance need to carry or move, user-friendly.
Waste Oil Alarm
The waste ink generated during production is automatically alarmed and needs to be cleaned up in time to avoid overflow, which leads to increased time costs for cleaning and maintenance in the later stage.
Epson I3200-A1 Print Head
The STAR IV DTF large-format printer from the DTF-1200 Series uses Epson I3200-A1 print heads. In comparison to DX5 and XP600, the Epson I3200 head has 3200 nozzles, a 600 dpi resolution, a higher jetting frequency, better color saturation, faster printing, and more accurate printing—all for an affordable price. extremely frugal.
| Model | I3200-A1 |
| Ink Types | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Product Specifications - DTF-1200 Series STAR IV Large-Format Printer
| DTF-1200series Inkjet Printer | ||||
| Model | DTF-1202 Star IV | DTF-1203 Star IV | DTF-1204 Star IV | DTF-1205 Star IV |
| Print Head Type | PrecisionCore Epson I3200*2 | PrecisionCore Epson I3200*3 | PrecisionCore Epson I3200*4 | PrecisionCore Epson I3200*5 |
| Print Resolution/Speed | 4pass:10m²/h – 15m²/h | 4pass:22m²/h – 34m²/h | 4pass: 38m² /hour | |
| 6pass:6.5m²/h- 10m²/h | 6pass:16m²/h- 24m²/h | 6pass: 28m²/hour | ||
| 8pass:3.5m²/h – 6m²/h | 8pass:12m²/h – 16m²/h | 8pass: 22m²/hour | ||
| Maximum Printing Width | 1200mm | |||
| Color Mode | C,M,Y,K+W | C,M,Y,K+LC,LM +W/ C,M,Y,K+FY,FP+W / C,M,Y,K+O,R,G,B+W | C,M,Y,K+W | C,M,Y,K+W; C,M,Y,K+LC,LM+FY,FP+W; C,M,Y,K+O,R,G,B+W |
| RIP Software | Maintop, Photoprint, Print Factory | |||
| Interface | Network Port | |||
| Dimensions | 2466mm L x 1514.8mm W x 853mm H | |||
| Package Size | 2540mm L x 1060mm W x 700mm H | |||
| Package Weight | 500KG | |||
| Powder Shaker & Dryer | ||||
| Model | DSP-1200(S10i Dual) | |||
| Operation Mode | SCM Touch Screen | |||
| Max Working Width | 1200mm | |||
| Oven Length | 1620mm | |||
| Oven Temp. | Adjustable | |||
| Voltage | 220-240V, 50Hz/60Hz | |||
| Power | 8KW | |||
| Machine Size | 2378mm*1839mm*914mm (L*W*H) | |||
| Package Size | 2520mm x 1940mm x 1110mm (L*W*H) | |||
| Package Weight | 650KG | |||
